Austin Big Seven (2 door) Wiring Diagram

Two-door 'Forlite' Saloon with double flament headlamp bulbs.

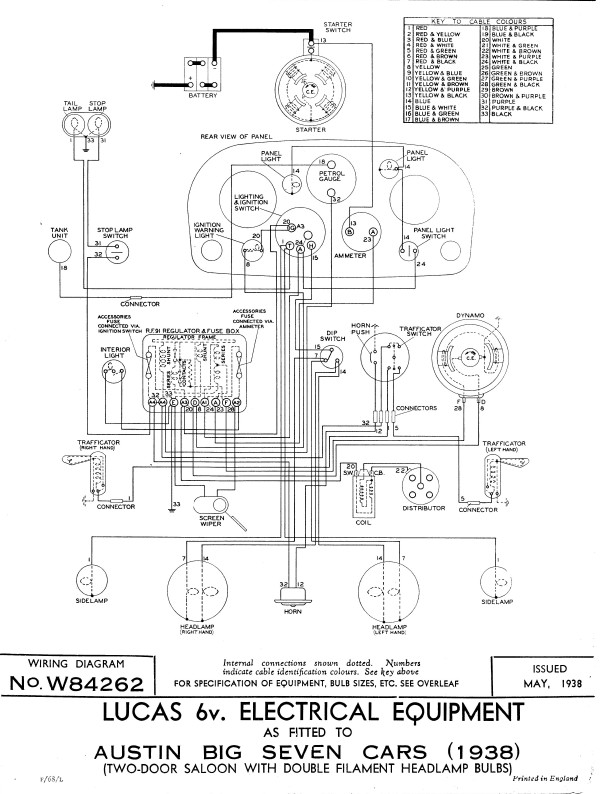

.Big7 (2dr) Wiring Diag 1

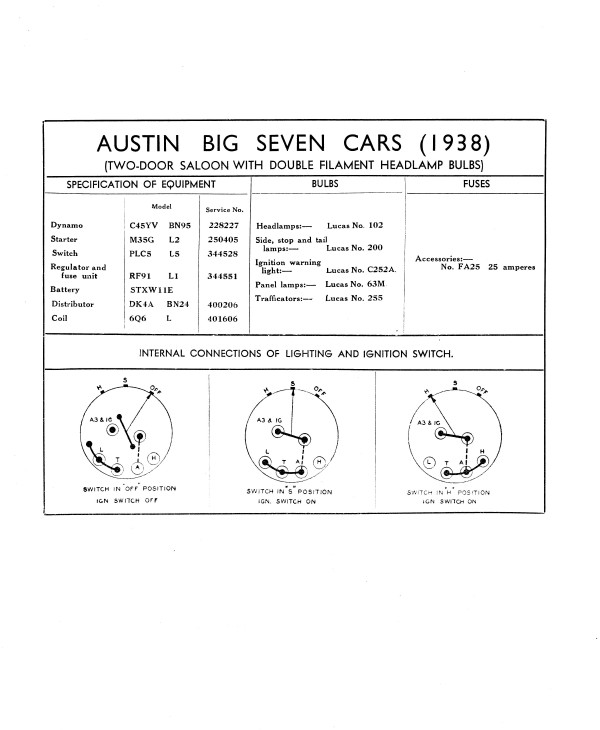

Big7 (2dr) Wiring 2
